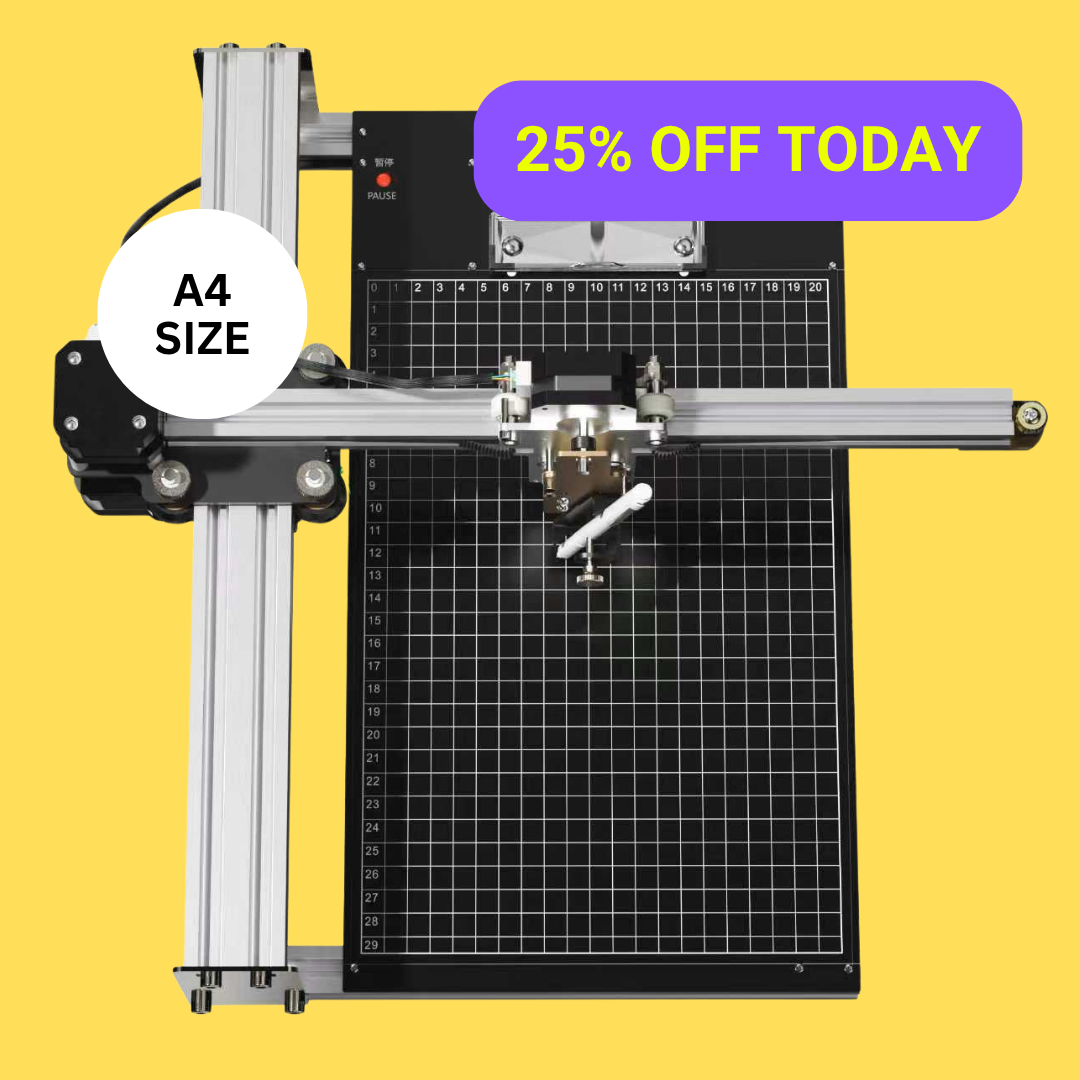

¿Estás listo para llevar tus proyectos creativos al siguiente nivel? No busques más: el UUNA TEK® iDraw 2.0 - tamaño A4, robot de dibujo/máquina de dibujo/máquina para tareas escolares/plotter de caligrafía/robot de escritura a mano/plotter de bolígrafo/grabadora láser, está diseñado para dar vida a tus ideas con precisión y versatilidad. Tanto si eres artista, aficionado al bricolaje o profesional en busca de una herramienta fiable, este dispositivo de vanguardia es tu puerta de entrada a posibilidades ilimitadas.
Delivered anywhere in the world at no extra cost.
Hassle-free returns or exchanges within 30 days.
Support for your machine for its entire lifetime.
Help available via email, chat, or Zoom.
Learn to set up and use your machine easily.
Para la mayoría de los diseñadores, calígrafos y propietarios de negocios, necesitas un sistema que funcione a la perfección con las herramientas que ya conoces. Nuestra línea de productos estándar ofrece compatibilidad total con G-code de código abierto, lo que significa que puedes importar vectores directamente desde Inkscape (con nuestras extensiones patentadas), LightBurn o Adobe Illustrator, generar la trayectoria de la herramienta y empezar a trazar al instante. No necesitas programar: solo automatización pura de escritura a mano industrializada.
Todos los trazadores de pluma iDraw de UUNA TEK admiten la combinación de correspondencia por correo electrónico para escribir cartas, sobres, tarjetas e invitaciones en grandes cantidades. Utiliza las fuentes Hershey para lograr una escritura similar a la humana.
Nuestra última versión es la máquina de escritura a mano más rápida, con un increíble aumento de velocidad del 200 % en comparación con Axidraw, lo que la convierte en la opción definitiva para quienes exigen resultados en tiempo récord.
Impulsado por la placa base Drawcore V2.0 y equipado con firmware compatible con GRBL, representa la cumbre de la innovación.
Logra una precisión mecánica impecable con una resolución mínima de 0,01 mm en los ejes Y y X, garantizando que cada trazo sea sencillamente perfecto.
Con cabezales láser de entre 500 mW y 2,5 W, puedes grabar una variedad de materiales, desde madera y plásticos hasta cuero y papel.
Gestiona sin complicaciones la potencia, la velocidad de grabado y los formatos de entrada con los complementos de control UUNA TEK 2.0.
Conéctalo mediante USB o Bluetooth, con compatibilidad con una amplia variedad de sistemas operativos, incluidos Windows 7/8/10/11 o posteriores, Mac OS y Linux.
【Rendimiento y precisión】
• Área de trabajo (dibujo): 8.5" × 11.69" (216 × 297 mm) — Carta estadounidense completa y A4
• Área de grabado (láser): 8.5" × 9.84" (216 × 250 mm)
• Recorrido vertical del bolígrafo (eje Z): 0.39" (10 mm)
• Velocidad máxima de dibujo/grabado: 0 – 196.85 in/min (0 – 5,000 mm/min)
• Precisión mecánica: Y: 0.0004" (0.01 mm), X: 0.0004" (0.01 mm)
【Capacidad de herramientas y hardware】
• Diámetro de bolígrafo compatible: hasta 0.63" (16 mm)
• Ángulo ajustable del bolígrafo: 70° – 90° (compatible con pinceles inclinados y bolígrafos de caligrafía)
• Opciones de potencia del láser: 500 mW / 1500 mW / 2500 mW
• Especificaciones del láser: 445±5 nm, enfoque fijo, control PWM (S0 - S1,000)
• Motores: 3 motores paso a paso NEMA 17 (42)
• Interruptores de límite: integrados (ejes X/Y)
• Materiales del bastidor: perfil de aluminio industrial + placa de acero
【Características físicas y dimensiones】
• Tamaño del producto: 15.75" × 15.75" × 6.30" (400 × 400 × 160 mm)
• Peso neto: 8.82 lbs (4 kg)
【Electrónica y conectividad】
• Placa base: DrawCore V2.0
• Conectividad: USB, Bluetooth
• Voltaje de entrada: 110 V - 220 V CA (compatible a nivel mundial)
• Salida del adaptador de corriente: 12 V / 1 A
• Temperatura de funcionamiento: -4 °F – 122 °F (-20 °C – 50 °C)
【Software y control】
• Firmware: compatible con GRBL
• Software de control/complementos: UUNA TEK 2.0 Control Extension
• Sistemas operativos compatibles: Windows 7/8/10/11+, macOS, Linux
• Software compatible: Inkscape (escritura/dibujo), LightBurn (grabado láser)
• Formatos de archivo compatibles: SVG, JPG, JPEG, PNG, BMP, G-code, etc.
1 X UUNA TEK iDraw 2.0 A4 trazador de pluma
1 X placa base A4
1 X kit de herramientas
1 X guía de inicio rápido
1 X tarjeta de agradecimiento
Descarga el software de Inkscape y los archivos completos aquí>>>.
Puedes encontrar el software para Windows, Mac y Linux, así como la guía de montaje del hardware y los detalles de instalación del software.
Para quienes necesiten funciones avanzadas:
1. Para quienes necesiten la función de guardar el archivo de trazado, descarguen esta versión>>>
2. Para quienes necesiten la función de combinación de correspondencia,
Windows: descarguen esta versión>>>
Mac o Linux: descarguen esta versión>>>
3. Para quienes necesiten la función láser, descarguen esta versión>>>
4. ¿Qué sucede si tengo conocimientos básicos de programación y quiero ajustar los parámetros originales para superar la limitación de velocidad? Descarga esta versión>>>
Para el trazador de bolígrafos UUNA TEK 1.0, consulta los tutoriales en video aquí>>>
Para el trazador de bolígrafos UUNA TEK 2.0, consulta los tutoriales en video aquí>>>
Para el trazador de bolígrafos UUNA TEK H, consulta los tutoriales en video aquí>>>
Para el software, consulta el video aquí>>>
Para la función láser, consulta los tutoriales en video aquí>>>
Política de envío: Todos los pedidos se tramitarán en un plazo de 48 horas laborables. Todos los paquetes se enviarán con DHL/UPS/USPS desde nuestros almacenes en China o desde el almacén de Amazon; llegarán a su destino en un plazo de 5 a 7 días laborables. Pueden producirse retrasos durante las temporadas de promociones. Consulte la política completa aquí>>>
Política de devoluciones: Ofrecemos una garantía de 1 año para todos los productos. Solo ofrecemos devoluciones y reembolsos gratuitos en caso de problemas de calidad o daños durante la entrega. Póngase en contacto con nosotros en support@uunatek.com antes de devolver el producto. Consulte la política completa aquí>>>
Ve a la extensión de control de iDraw 2.0, selecciona Opciones->Configuración->Modelo de iDraw: iDraw A4.
Aquí tienes algunos consejos para usar Auto Home.
1. Comprueba que los cables de los interruptores de contacto estén conectados correctamente; sigue esta guía: https://www.youtube.com/watch?v=5B4nb2k6eAc
2. Mueve manualmente el carro del eje X hacia la izquierda tanto como sea posible y comprueba si toca el interruptor de contacto del eje X.
3. Mueve manualmente el carro del eje Y hacia atrás tanto como sea posible y comprueba si toca el interruptor de contacto del eje Y.
4. Asegúrate de que los cables estén bien colocados para que no se enganchen en los carros XY. Consulta esta guía para organizar el cable del eje Z: https://www.youtube.com/watch?v=LTwPYPh3rdE
Sí, puedes reanudar tu trabajo después de pulsar el botón rojo de parada de emergencia. Una vez pulsado, la máquina se pausará y esperará más instrucciones. Para continuar:
👉 Consejo: Asegúrate siempre de elegir la opción de reanudación adecuada según el progreso de tu proyecto para evitar dibujos superpuestos o incompletos.
Sí, el eje Z puede ajustar la distancia de trabajo de 0 a 10 mm.
Sí, se puede controlar el tiempo de escritura.
Sí, admite comandos de código G. El firmware de la placa base es compatible con GRBL.
Sí, puede hacerlo. La máquina admite cargas de hasta 200 gramos y un diámetro máximo de 15 mm.
De forma predeterminada, el código limita la altura del eje Z; puedes ajustar la siguiente configuración, como se muestra en las imágenes, para obtener mayor flexibilidad.
1.idraw_deps>idraw2_0internal>idraw.py
Ajusta la altura de 10 a la altura que esperas, por ejemplo 30, en self.options.pen_pos_up y self.options.pen_pos_down.
2. idraw2_0.inx
Ajusta el valor máximo max="10.0" a la altura que prefieras en <param name="pen_pos_down" type="float" min="0.1" max="10.0" _gui-text="Altura de la pluma: ABAJO (mm):">5.0</param>
